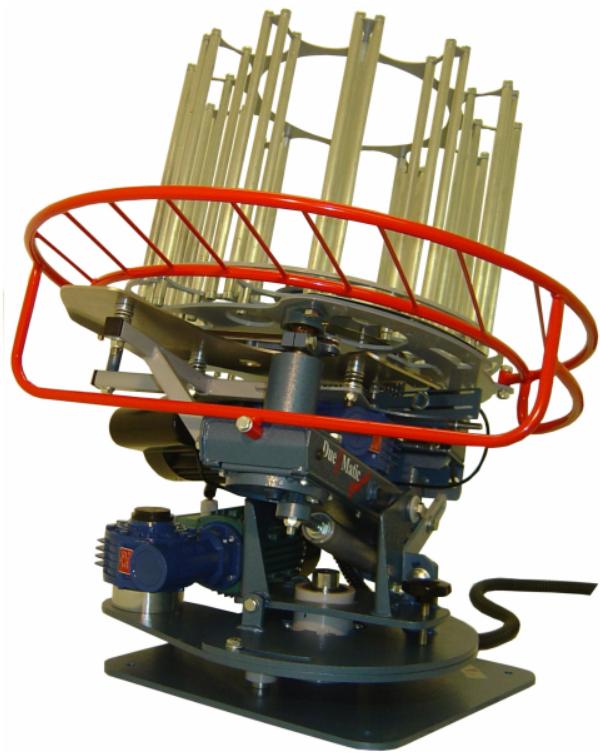

Compact 12 ATA Trap

Info in () for USA customers.
Height 105 cm (42").
Width 78 cm (31").
Length 92 cm (37).
Weight 150 kg (330 pounds).
Throwing length 55-85 meter (60-95 yards)
Magazine capacity 548 (452) targets
Motor 2 Pcs. Grundfos elektro
12V: 0,3 kW 110/230/400 V: 0,37
Cocking gear 12V: 1:64, time 2,4
110/230/400V 1:64, time 2,4/2,7 sec.
Target separation Knifes.
Release system Fast solenoids.
Accessories Interrupter.
Construction Strong construction, in 4 -10 mm steel plate, Launch plate in Stainless steel.
Adjustable Throwing length, capsize, vertical and horizontal
Throwing arms In aluminium, with rubber.
Download Product Information - Manuals/Parts Lists

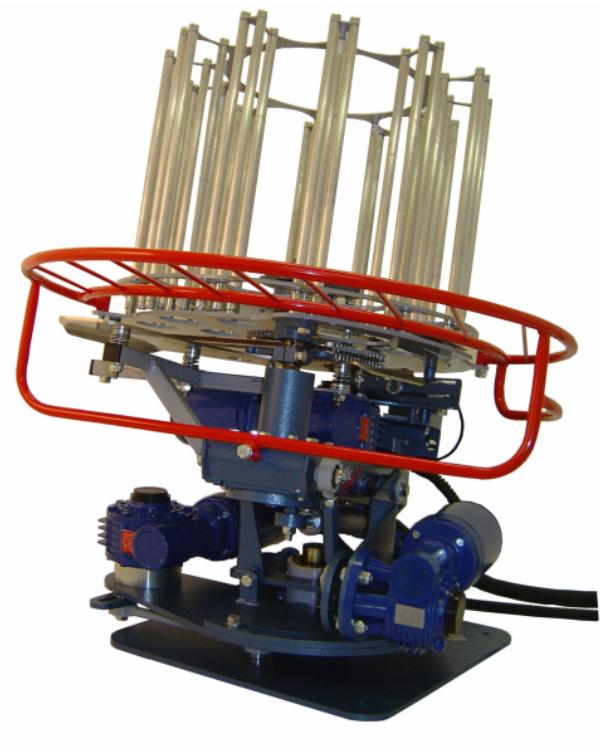

Compact 12 "Wobble" Trap

Info in () for USA customers.
Height 105 cm (42").
Width 78 cm (31").
Length 92 cm (37).
Weight 175 kg (385 pounds).
Throwing length 55-85 meter (60-95 yards)
Magazine capacity 548 (452) targets
Motor 3 Pcs. Grundfos elektro
12V: 0,3 kW 110/230/400V: 0,37
Cocking gear 12V: 1:64, time 2,4
110/230/400V 1:64, time 2,4/2,7 sec.
Target separation Knifes.
Release system Fast solenoids.
Accessories Interrupter.
Construction Strong construction, in 4 -10 mm steel plate, Launch plate in Stainless steel.
Adjustable Throwing length, capsize, vertical and horizontal
Throwing arms In aluminium, with rubber.
Download Product Information - Manuals/Parts Lists

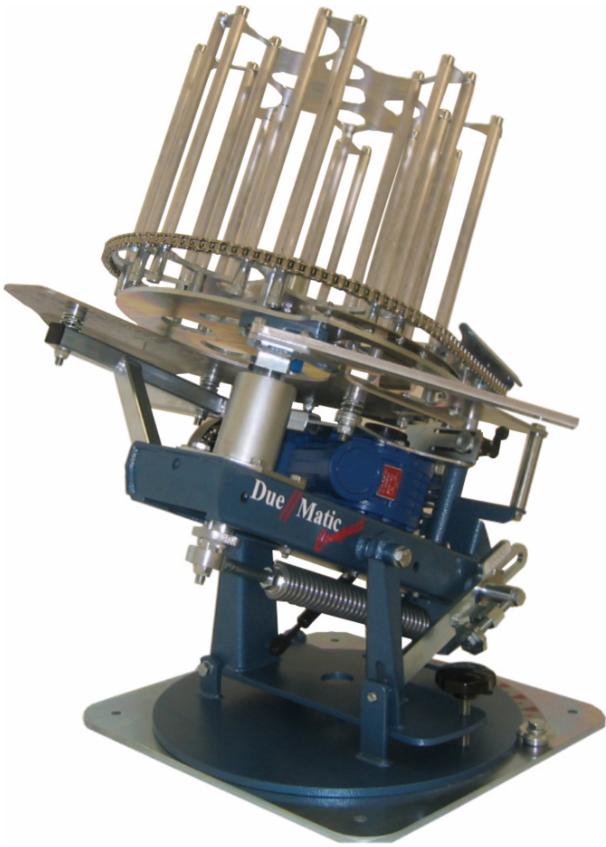

Compact 8, OL-Trap

Height 87 cm.
Width 65 cm.
Length 70 cm.
Weight 97 kg.
Throwing length 50 to 85 meter
Magazine capacity max 320 targets
Motor Grundfos elektro 110/230V: 0,37 kW
Cocking gear 1:64
Cocking time 110/230V: 2,4/2,7 seconds
Release system Fast solenoids
Accessories Computer system
Construction Strong construction in 4-10 mm steel plate. Launch plate in 10 mm Stainless steel.
Adjustable Vertical, horizontal Fine adjustment: tilt.
Throwing arms In aluminium, with rubber.
Download Product Information - Manuals/Parts Lists

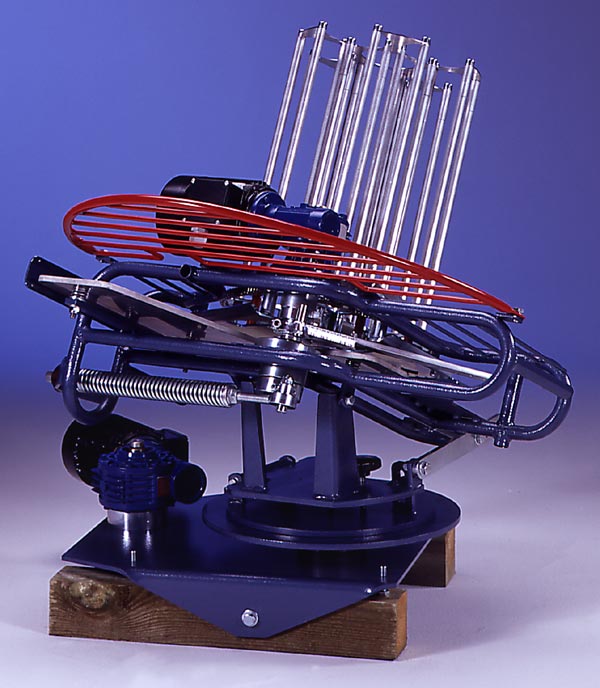

Standard 200 ATA Trap

Height 110 cm.
Width 90 cm.
Length 90 cm.
Weight 130 kg.
Throwing length 45 to 75 meter
Magazine capacity max 250 targets
Motor 2 pcs. Grundfos elektro 230 / 400 V: 0,37 - 0,25 kW 12 V: 0,25 kW
Cocking gear 1:60
Cocking time 2,6 seconds
Release system 230 / 400 V: elektromagnet
Accessories cable
Construction Steel tube welded into one, Throwing plate in 10 mm aluminium
Adjustable Throwing length, capsize, vertical and horizontal
Throwing arms In aluminium, with rubber.
Manuals/Parts Lists

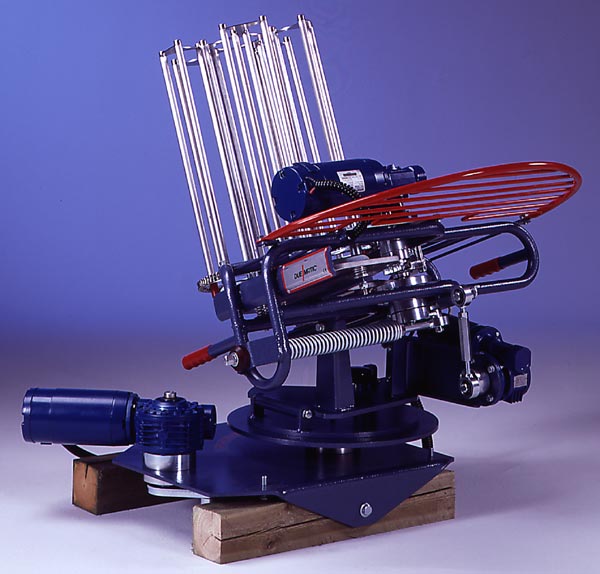

Standard 200 "Wobble" Trap

Height 100 cm.
Length 90 cm.
Weight 140 kg.
Throwing length 45 to 75 meter
Magazine capacity max 250 targets
Motor 3 stk. Grundfos elektro 230 / 400 V: 0,37 - 0,25 kW 12 V: 0,25 - 0,18 kW
Cocking gear 1:60
Cocking time 2,6 seconds
Release system 230 / 400 V elektromagnet
Accessories cable
Construction Strong built in 4-8 mm steel plate, throwning plate in 10 mm aluminum.
Adjustable Throwing length, capsize, vertical and horizontal
Throwing arms In aluminium, with rubber.
Manuals/Parts Lists

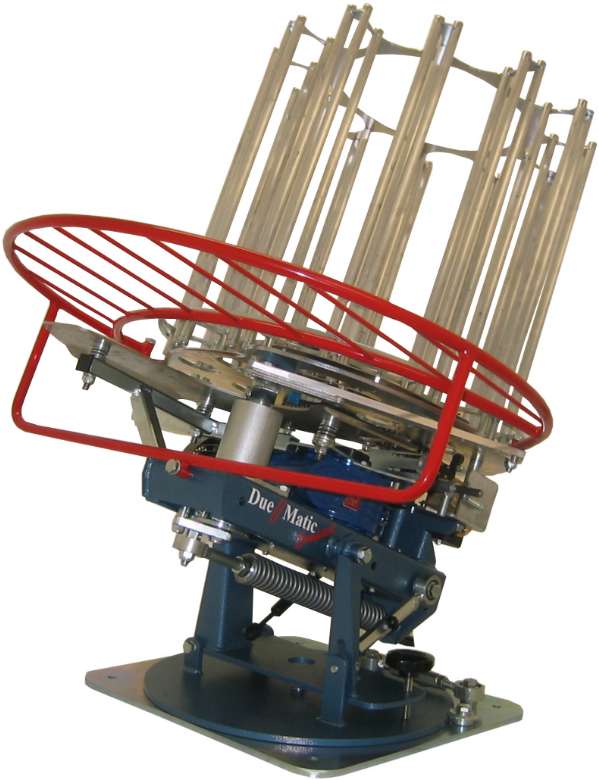

Compact 12, Skeet

Info in () for USA customers.
Height 115 cm (46").
Width 78 cm (31").
Length 92 cm (37").
Weight 118 kg (260 pounds).
Throwing distance 55-85 meter (60-95 yards).
Target capacity max targets, 2 Machines 1536 (1320).
Motor Grundfos elektro 110V / 230V: 0,37 kW
Cocking gear 110V/230V 1:64, time 2,4/2,7 sec.
Target separation Knifes.
Release system Fast solenoids.
Accessories Timer, prepared for signal lamps.
Construction Strong construction in 4-10 mm steel plate. Launch plate in 10 mm Stainless steel.
Adjustable Fine adjustments vertical, horizontal and tilt.
Throwing arms In aluminium, with rubber.
Download Product Information - Manuals/Parts Lists

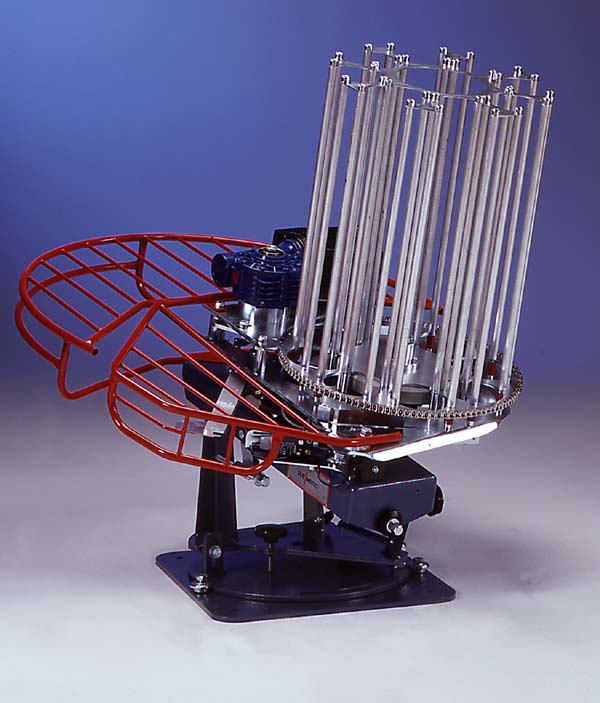

Master 320 Sporting

Height 90 cm.
Width 105 cm.
Length 90 cm.
Weight 125 kg.
Throwing length 55 to 75 meter
Magazine capacity max 400 targets
Motor Grundfos elektro 230 / 400 V: 0,37 kW
Cocking gear 1:64
Cocking time 2,7 seconds
Release system 230 V elektromagnet, 400 V microswitch
Accessories cable
Construction Strong built in 4-8 mm steel plate, throwning plate in 10 mm aluminum.
Adjustable Throwing length, capsize, vertical and horizontal
Throwing arms In aluminium, with rubber.
Manuals/Parts Lists

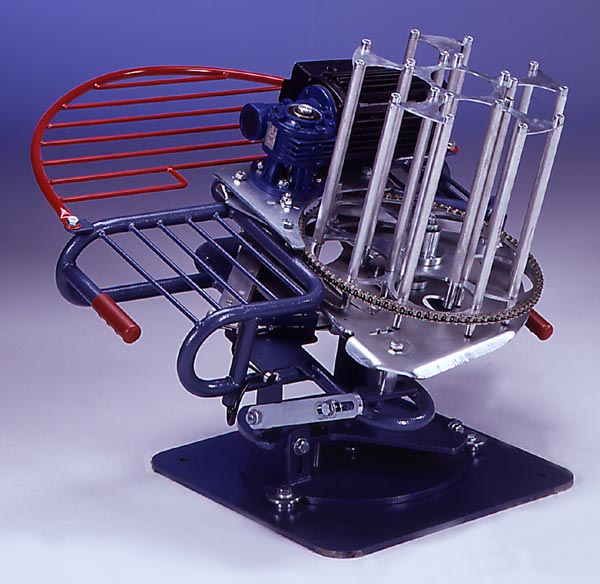

Standard 200 Battue

Height 70 cm.
Length 90 cm.
Weight 75 kg.
Throwing length 55 to 75 meter
Magazine capacity max 300 targets
Motor Grundfos elektro 230 / 400V: 0,37 kW 12V: 0,25 kW
Cocking gear 1:60
Cocking time 2,6 seconds
Accessories cable
Construction Steel tube welded into one. Throwing plate in 10 mm aluminium
Adjustable Throwing length, capsize, vertical and horizontal
Throwing arms In aluminium, with rubber.
Manuals/Parts Lists

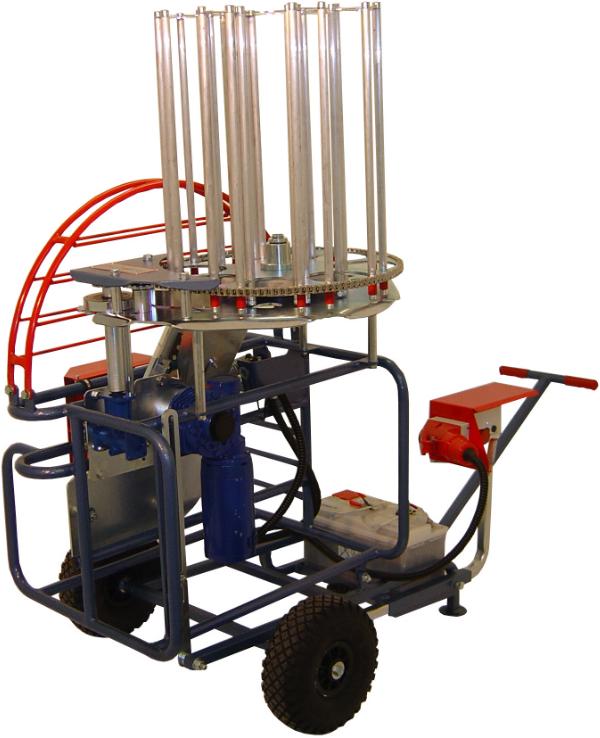

Standard 200 Rabbit Cart

Info in () for USA customers.
Height 147 cm (58").
Width 82 cm (29").
Length 90 - 170 cm (36-67").
Weight 100 kg (220 pounds).
Throwing length 20 to 50 meter(22-55 yards)
Magazine capacity 400 targets
Target size Auto Rabbit 110 mm
Motor 12 V: 0,25 kW
Cocking gear 1:64, time 2,7 sec.
Target separating Gentle rubber wheel.
Accessories cable and release button
Construction Stable Steel tube frame.
Launch plate Elerctroplate
Adjusting Vertical: -50 to +450.
Throwing arms In aluminium, with rubber.
Download Product Information - Manuals/Parts Lists

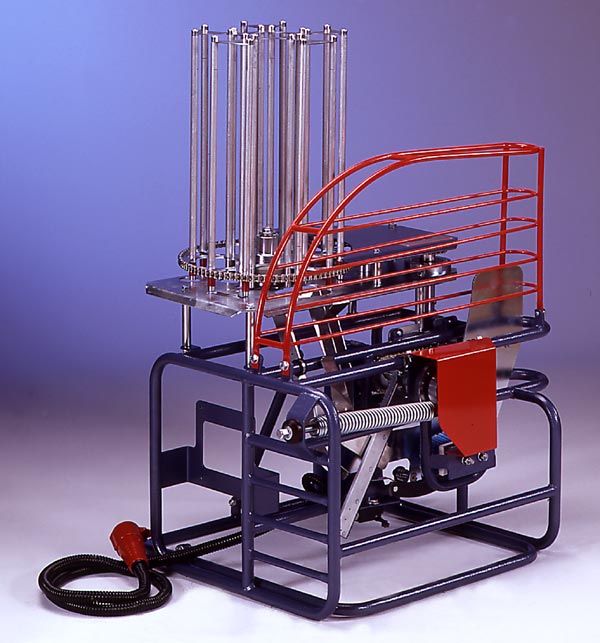

Standard 200 Teal

Height 120 cm.
Width 70 cm.
Length 90 cm.
Weight 80 kg.
Throwing length 20 to 30 meter
Magazine capacity max 250 targets
Motor Grundfos elektro 230V: 0,37kW 12V: 0,25kW
Cocking gear 1:60
Cocking time 2,6 seconds
Accessories cable
Construction Steel tube. Throwing plate in 10 mm aluminium.
Adjustable Throwing length, vertical and horizontal
Throwing arms In aluminium, with rubber.
Manuals/Parts Lists

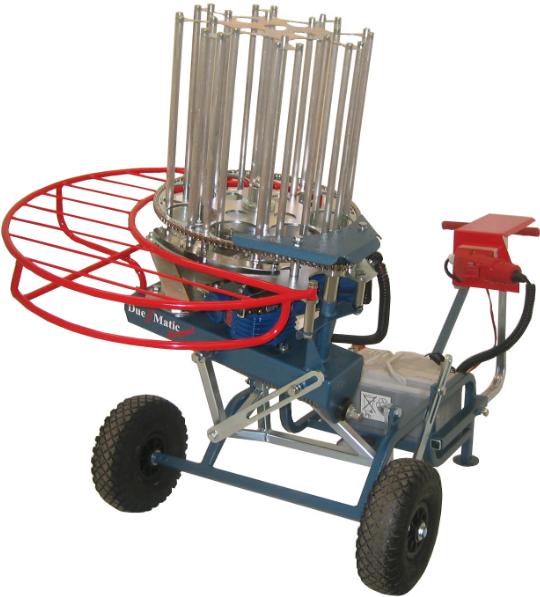

Compact 8, Cart

Info in () for USA customers.
Height 112 cm ( 45").
Width 102 cm (40").
Length 147 - 180 cm (58-70").
Weight 85 kg (187 pounds).
Throwing distance 55- 82 meter (60-93 yards).
Magazine capacity 352 - (376) targets.
Motor 12V: 0,25kW.
Cocking gear 1:64, time 2,4 sec.
Target separating Knifes.
Accessories Cable and release button
Construction Strong construction, in 4-6 mm steel plate. Stainless steel launch plate.
Adjusting Tilt: Left: 450 Right: 300 Up: 600 Down: -100
Throwing arms In aluminium, with rubber.
Download Product Information - Manuals/Parts Lists

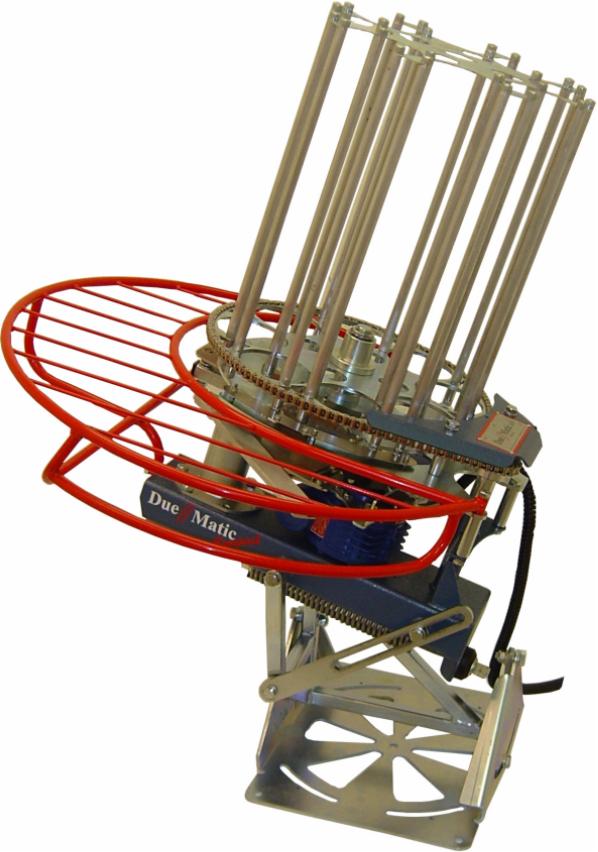

Compact 8, Base

Info in () for USA customers.
Height 108 cm ( 43").
Width 90 cm (35").
Length 87 cm (34").
Weight 80 kg (176 pounds).
Throwing distance 55-82 meter (60-93 yards).
Magazine capacity 352 - (376) targets.
Motor 12V: 0,25kW 110/230V: 0,37 kW
Cocking gear 110/230V: 1:64, time 2,4/2,7 sec.
12V: 1:64, time 2,7 sec.
Target separating Knifes.
Accessories Cable and release button
Construction Strong construction, in 4-6 mm steel plate. Stainless steel launch plate.
Adjusting Tilt: Left: 450 Right: 300 Up: 600 Down: -100
Throwing arms In aluminium, with rubber.
Download Product Information - Manuals/Parts Lists

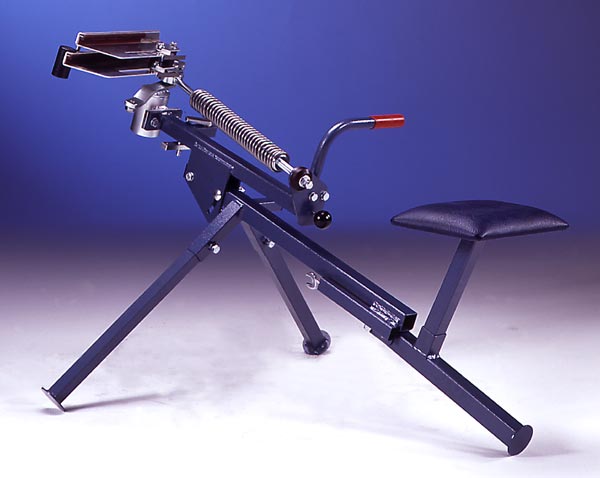

Manual Sporting

Info in () for USA customers
Weight 21 kg (46 pounds).
Throwing distance 40 - 90 m (44 - 98 yards) single target
30 - 75 m (34 - 82 yards) doubles
20 - 50 m (22 - 55 yards) rabbit
20 - 50 m (22 - 55 yards) battue
Release system Manual
Target size Standard
Midi: 90 mm
Mini: 60 mm
Rabbit
Battue
Construction Stable square Steel tube.
Throwing adjusting Horizontal and vertical
Adjusting Horisontal and vertikal
Throwing arm Double arm in aluminum, with rubber
Delivery In box 0,3 x 0,6 x 0,2 cm
Download Product Information - Manuals/Parts Lists

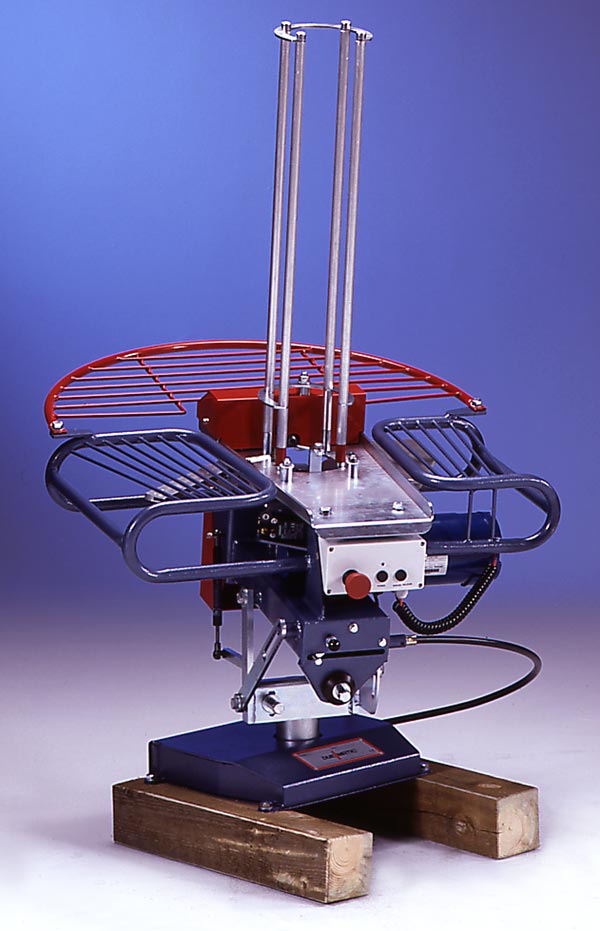

Single Stack "Wobble"

Info in () for USA customers
Height incl. Magazine and timber 130 cm (51").
Length 80 cm (31")
Weight 75 kg (165 pounds).
Throwing distance 40-80 meter (44-87 yards).
Magazine capacity max. 69 targets
Power 12V DC battery - approx. 5.000 firings/charge.
Motor 12V: 0,25 kW
Cocking gear 1:60, time 1,5 sec.
Construction Stable steel tube frame.
Magazine, launch plate and Throwing arm in aluminium
Adjusting-horizontal Manual: Locked position.
Aut.: 00 or 440.
Adjusting-vertical Manual adjusting 0 to 50 degrees.
Aut.: Spreading 2 m (2.2 yd), 10 m (11 yd) from the machine.
In area from 5 - 450.
Accessories Cable and release button
Ekstra Accessories Battery 90 A- charger - handcart - remote -
90 mm. Magazine - 60 mm Magazine
Download Product Information - Manuals/Parts Lists
